1/4" OD 50FT(15M) Air Line Tubing Kit with 15pcs Push to Connect Fittings
12 sold in last 24 hours

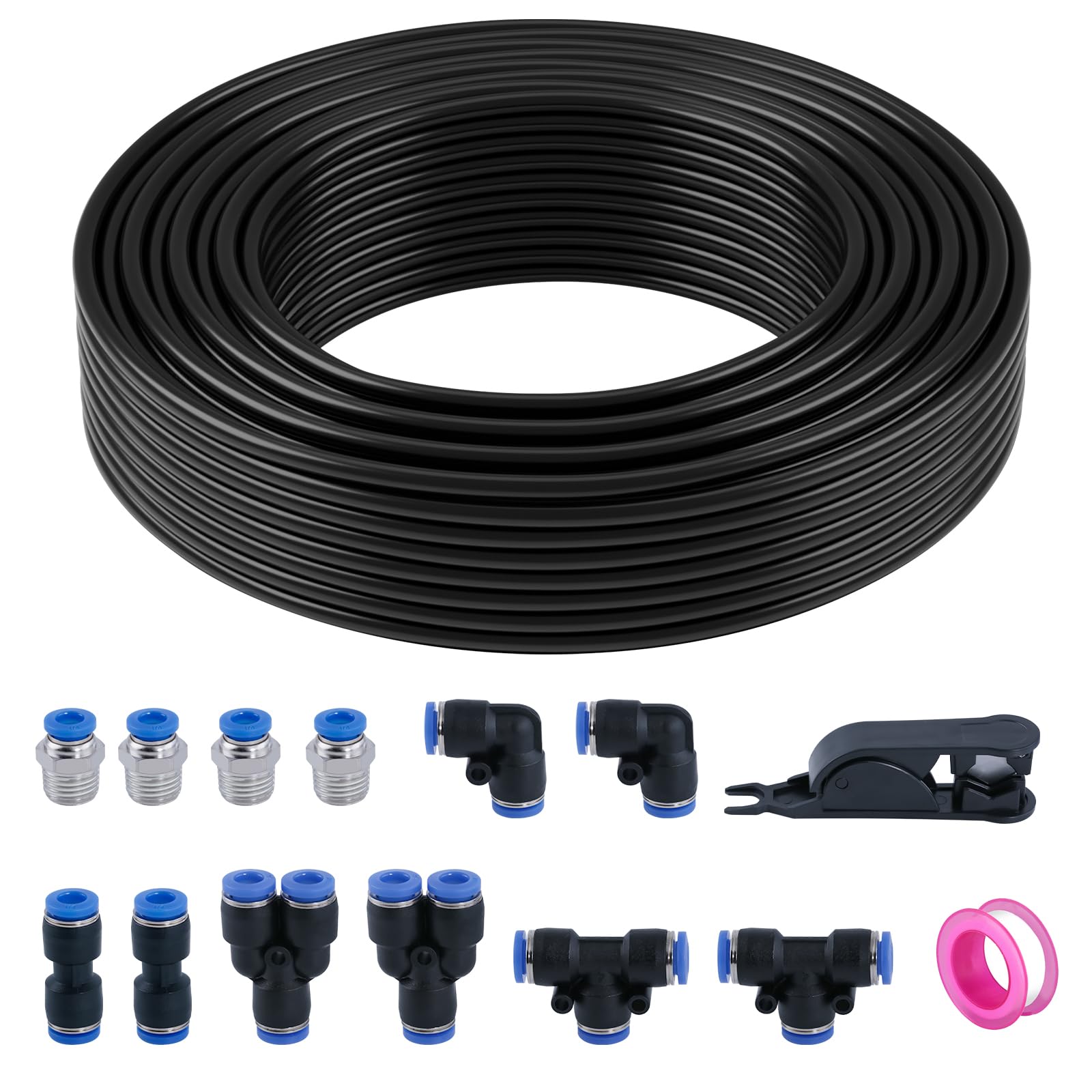

- YOU WILL GET - The 1/4" Air Hose Fittings Kit includes 50 feet(15.24m) of black 1/4" Air Line. 2 Splitters, 2 Elbows, 2 Tees and 2 Unions. 4 male straight fittings fit 1/4" Tube OD and with 1/4" NPT Thread, 1 pc Plastic Tubing Cutter, 1 roll (4 meters) Thread Seal Tape(Pink shell and blue shell are distributed randomly)

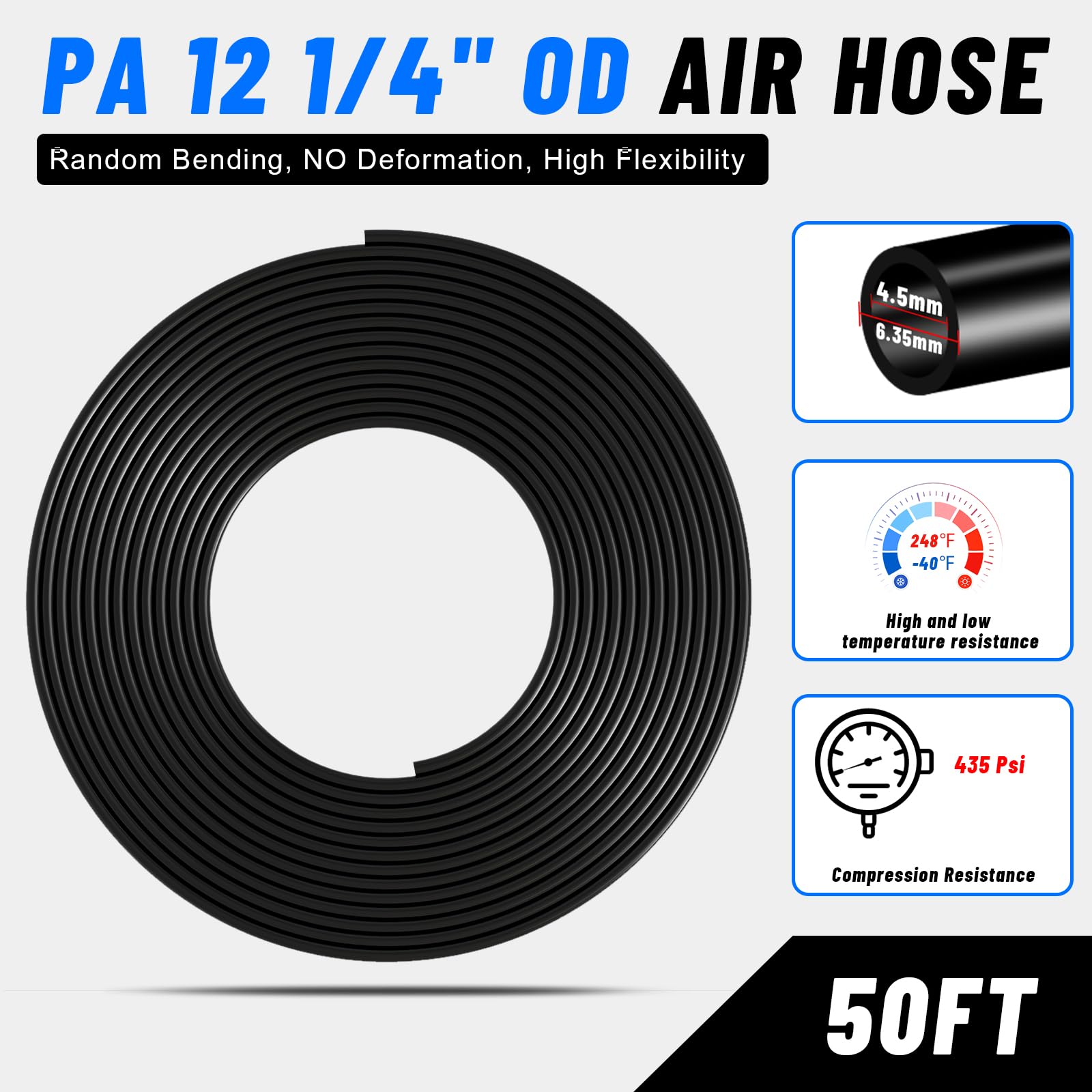

- SAE J844 DOT APPROVED HOSE - The 1/4" air line made of high-quality PA12 Polyamide, meets DOT Standards and SAE J844 air brake system requirements. Working Pressure Of 1mpa (145 Psi) And A Max Pressure 450 Psi. Working Temperature: -40 °C+120 °C. Provide highly flexible , excellent resistance to wear and Impact

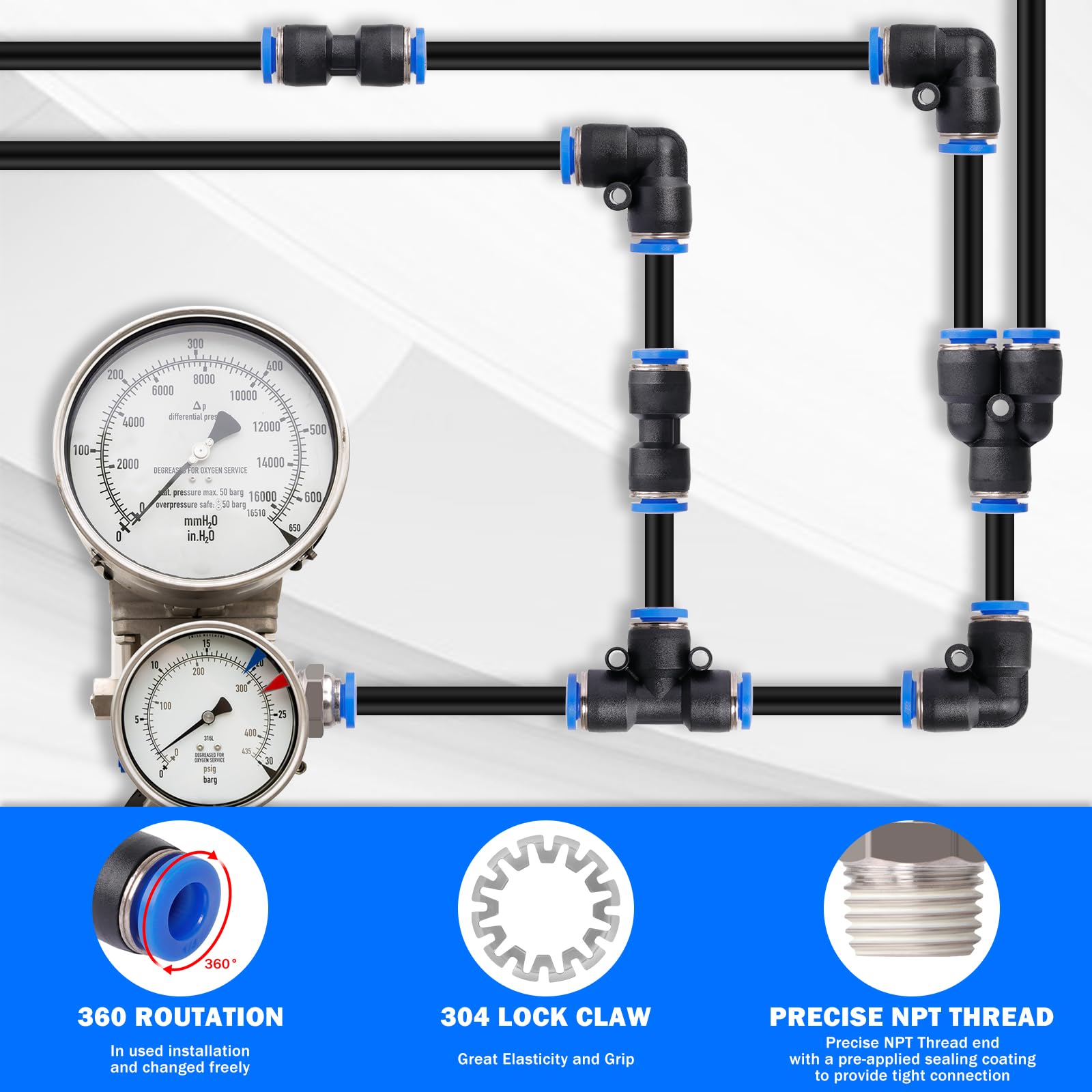

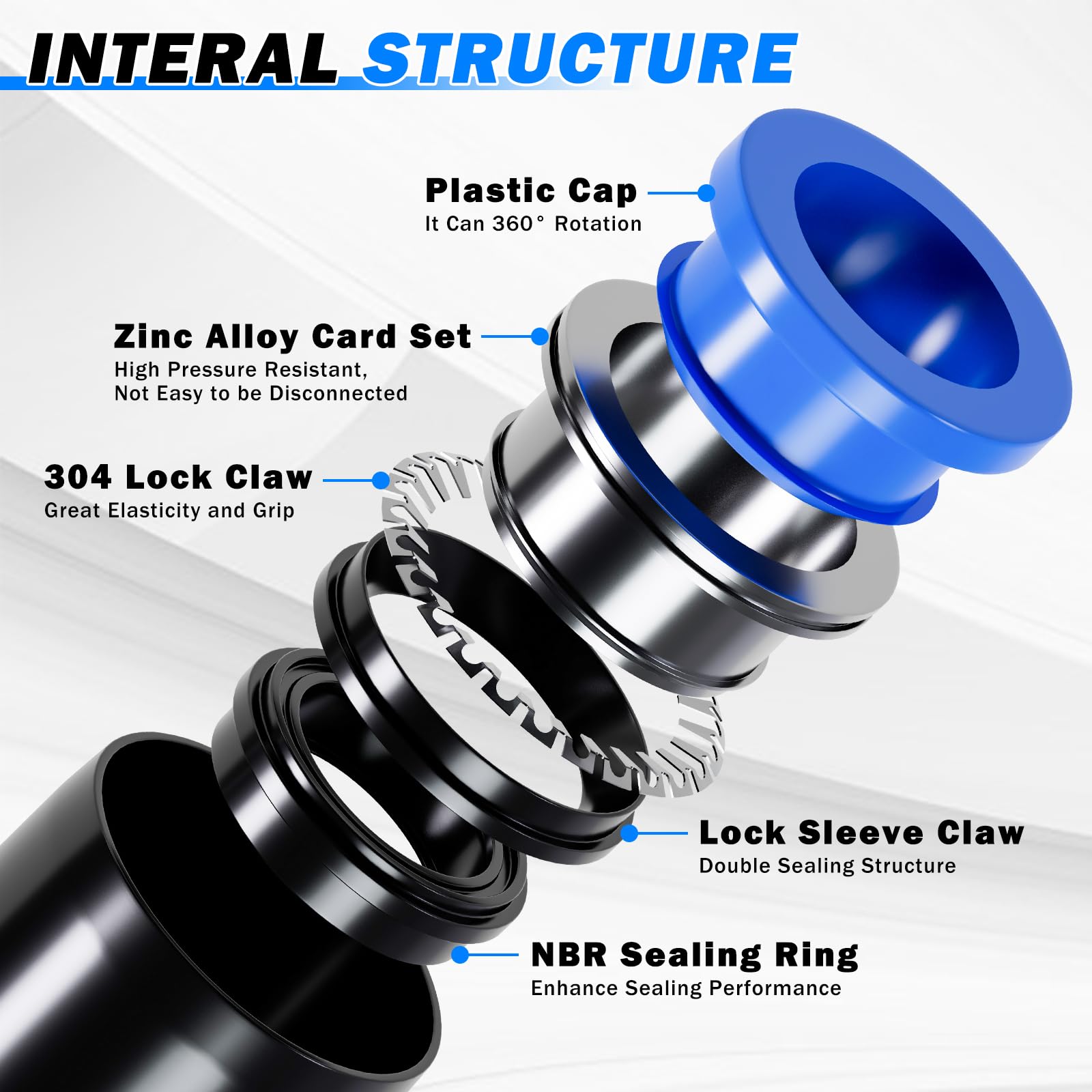

- PUSH TO CONNECT FITTINGS - Quick connect air hose fittings kit made of high quality Polybutylene Terephtalate (PBT) and with stainless steel lock claw and good steel washers for a thousand bounces. High pressure resistance and environmental, can withstand strong pressure without tripping. Fluid type: air, vacuum, 0 - 145 Psi, 0 - 0.9 Mpa. Proof pressure: 1.32 Mpa. Temperature Range: 0-60 °C | 32 -140 °F
- WIDE APPLICATION -1/4 air line fitting kit is suitable for PU / PA / PE / PVC lines or hoses. Our 1/4" air hose for air brake system,air or fluid transfer, transfer liquids, air, water or solids. They widely applied in automotive, manufacturing production lines or truck or trailer repairs. Besides those, daily gardening maintenance and lawn mower machine areas also need those items
- EASY TO INSTALL - Push to connect air fittings assortment is a simple push in design and easy to be installed. Release rings at the top could be pushed down easily when inserting the tube into the coupler and bouncing up immediately when taking out the tube. Cutting tool is included for meeting your tube length requirements
Estimated shipping
Select a product to estimate shipping.PA nylon tube has stronger toughness, smaller bending radius, larger bending limit, smooth delivery and no blockage compared to ordinary air hose.
New polyamide material, refuse to return to the material, full of particles, not easy to burst the tube every inch after strict screening.
Nylon Tube can adapt to the Temperature Difference in Different Areas, can Withstand Temperature:-40°F-248°F| -40°C-120°C. Long Service Life.
Small Bending Radius, Moderate Hardness, Not Easy out of the Line Bending Flat Clogging Phenomenon, a Wide Range of Applications.
Product details
| Main Specification | |
|---|---|
| Included Components | 1 pc Plastic Tubing Cutter or 1 roll (4 meters) Thread Seal Tape. or 15 pcs air line tubing kit: 50 feet(15.24m) of black 1/4" OD Air Line or 2 Splitters or 2 Elbows or 2 Tees and 2 Unions or 4 male straight fittings fit 1/4" Tube OD and with 1/4" NPT Thread |
| Material | Polyamide or Polybutylene Terephtalate (PBT) |
| Manufacturer | Taiidaues |
| Unit Count | 40 Count |
| Item dimensions L x W x H | 1 X 1 X 1 Inches |
| Exterior Finish | Brass |
| Brand | Taiidaues |
| Number of Pieces | 40 |
| Thread Size | 1/4'' |
| Colour | Gold |
| Size | 15PCS & 50FT 1/4" Air Line |
| Connector Type | Elbow |
| Thread Type | Npt |
| Item Weight | 0.46 kg |
| Product information | |
| Number of Packs | 1 |
| Set Name | Air Line Tubing Kit |
| Technical Details | |
| Material Type | Polybutylene Terephtalate (Pbt) or Polyamide |
| Manufacturer Part Number | PTC |
| Item details | |
| Model Number | T-AH-PTC-15PCS |
| Item Type Name | Quick connect air hose fittings kit |
| Measurements | |
| Item Dimensions | 1 x 1 x 1 inches |
| Others | |
| Item Highlight | Taiidaues SAE J844 PA Nylon Air Line and Quick Connect Fitting for Air Brake System or Fluid Transfer or Pneumatic Automation |
| Product Type | Quick connect air hose fittings kit |
